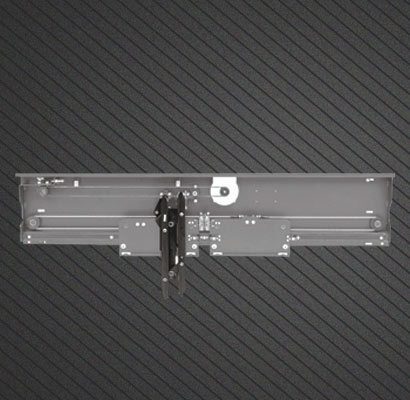

TKP131-08

Center Opening AC PM Door Operator

Using PM motor, large rotary torque, high efficiency, energy saving.

Using motor synchronous belt with direct drag mode to transfer torque, more compact design.

Strongly comfortable feelings of adjusting speed, achieve the completely closed loop control of the torque, speed and position.

Using synchronous door clutch; Car frame, car top and wall installation

Car Operator load weigh ≤ 200 KG; voltage: 200 V ̴ 250 V, 50 / 60 Hz

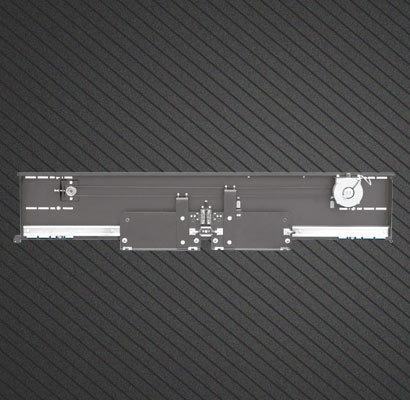

TKP131-09

Center Opening AC PM Door Operator

Using PM motor, large rotary torque, high efficiency, energy saving.

Using motor synchronous belt with direct drag mode to transfer torque, more compact design.

Strongly comfortable feelings of adjusting speed, achieve the completely closed loop control of the torque, speed and position.

Using asynchronous Skatedoor clutch; Car frame and car top installation

Door Operator load weigh ≤ 200 KG; voltage: 200 V ̴ 250 V, 50 / 60 Hz

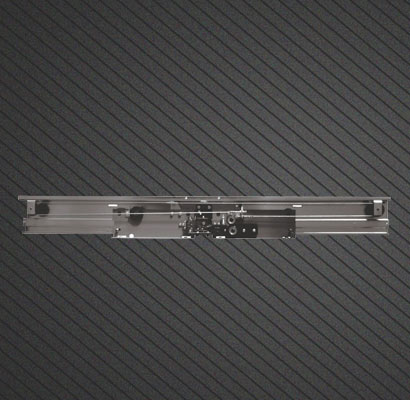

TKP161-05G05

Center Opening Landing Door mechanism

It’s landing door locking device has passed 1 million times of life test with CE certificate; mechanism has passed 45 kg. pendulum impact test.

Using weight drop close mode, the weight drop and guide rod are placed in the inner side of door panel, when there is a glass panel, the weight drop is beside the door panel.

Door panel unlocking mode, or door frame unlocking mode.

The door locking contactor voltage: AC 110V, Dc 220V.

Can be with glass door panel.
